NOTHING IS IMPOSSIBLE

EZ-SL600
The key characteristics of the EZ-SL600 are its reliability and efficiency. It applies the most advance door technology utilising sophisticated components to develop a state-of-art automatic sliding system.

EZ-SL600 works electro-mechanically with control unit, motor unit, transmission, emergency unit as well as electrical locking device (fail-secure) or electro-motor brake (fail-safe). Motor unit – Low gear and high performance DC motor with precision gearbox and micro-digital encoder for smooth operation. Coupled with a heavy duty power supply, the EZ-SL600 is able to handle weight loading of 600kg.

EZ-SL600 is capable of handling both single and bi-parting and is designed to suit all kinds of door entrances. It is adaptable to various type of door leaves –full frame door, timber door, steel door, aluminium door, transparent glass door etc.

EZ-SL600 operates safely with highest accuracy and performance. Knowing precisely which way the door is moving and the positioning of the door, it gives precise instruction for each position which ensures maximum safety measures.

To eliminate the risk of people being hit by closing doors, the door is equipped with unique safety devices that automatically reverse immediately to its opened position when it detects resistance. If any obstruction is detected between open doors, it will stop immediately and will only resume to close after a time delay.

EZ-SL600 can be integrated with an emergency unit that will

                                             automatically open or close the door in

                                             the event of a power failure. It can also

                                             be interfaced with building fire alarm

                                             system or smoke detector. The function

                                             of the EZ-SL600 is exactly the same as

                                             EZ-SL except it is of a higher

                                             specification example the weight

​                                             loading, wide opening width, heavy duty

                                             carriage and a very powerful drive.

                                             Also Available with Ultra Heavy Duty

​                                             System up to 1500kg, the EZ-SL1500.

"VERSATILE  ACCURACY
RELIABLE  DURABLE
                 SAFE  SECURE "

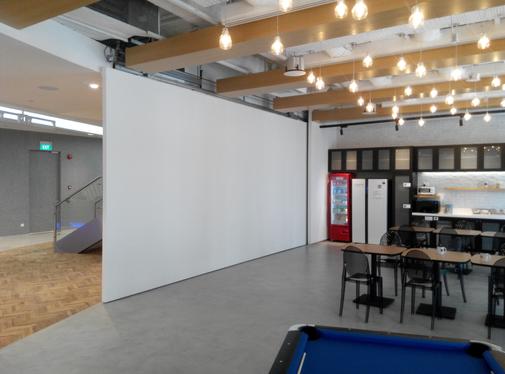

Heavy Duty Sliding Door

Door Weight : 650kg

Dimension : W6500 x H3500mm

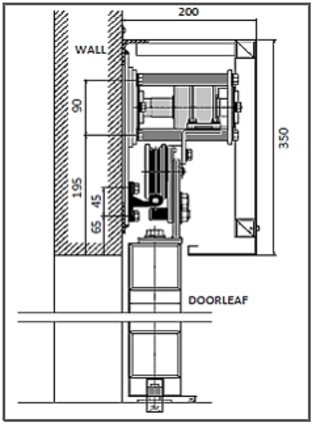

Heavy Duty Sliding Track

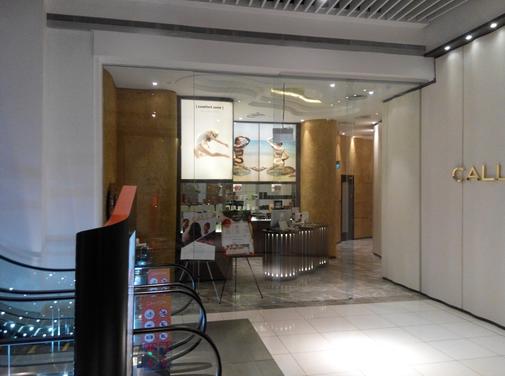

Heavy Duty Telescopic Sliding Door

Thickness Of Glass 15mm

Dimension : W3600 x H4000mm

Heavy Duty Double Carriage Wheel For SL600 & SL1500 Application

HEAVY DUTY SLIDING DOOR

Motor Lock is fail-safe, that is when there is a power failure, door will be unlocked. Motor Lock can be selected to be always lock at closed position in Auto Mode or Lock at closed position in Lock Mode or Exit Mode

Heavy Duty Drive System capable of both :
~ belt driven or chain driven
~ fail-safe motor lock or fail-secure
~ single-leaf, bi-parting or telescopic
