The ACCESSCO SW4000 is designed for high traffic entrances providing safety, convenience and reliability. The variety of header designs available will satisfy any architectural requirement. Its state-of-the-art control allows the operator to be used for a fully automatic or disability compliance.

Whether the requirement is for a complete door package or automation of an existing swing door, the SW4000 is the solution. The controls allow this operator to meet either ANSI A156.10 Power Operated or ANSI A156.19 Low Energy requirements. Complete door packages conceal the operator in the door header. The SW4000 can also be manually operated, with power on or off, without damage to the operator.

STANDARD FEATURES :
► Adjustable opening and closing speeds
► Adjustable time delay for closing from 2 to 30sec
► Push-N-Go – activation when door is pushed
► Automatic or manual operation
► Low-energy & barrier-free entry
► Obstruction sensing – Reduces opening force if door meets obstruction
► Soft Touch™ – Reopens the door if obstructed during closing cycle
► Control has multiple inputs/outputs for interfacing with safety and security devices
► Quadracoil™ closing spring for high reliability and durability

SPECIFICATION OPTIONS :
► Finish in Anodized Aluminium, Power Coat, SS Clad

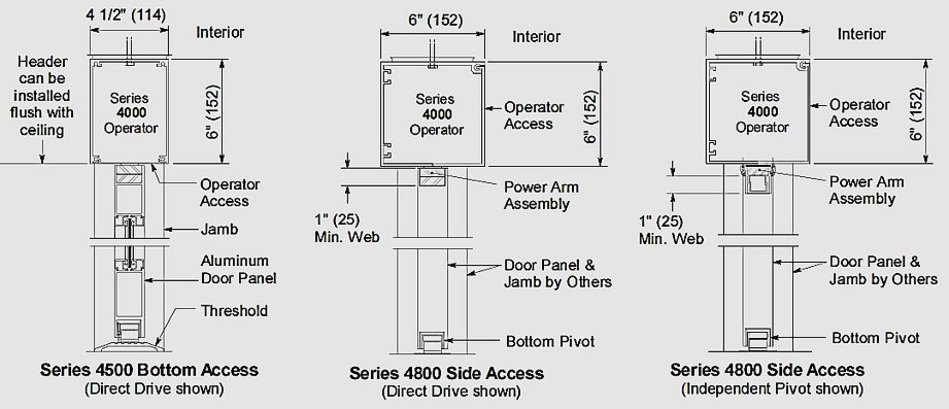

► Configuration with bottom access, side access or full access headers
► Mounting options – overhead concealed or surface applied
► Door panels – narrow, medium and wide stiles

GLAZING OPTIONS :
► Muntin and bottom rails
► Overall dimensions
► Activation and safety packages
► Guide rails

AUTOMATIC CONCEAL SWING OPERATOR
